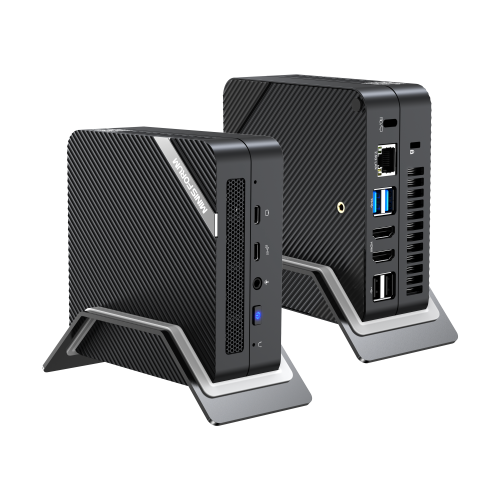

• Venus Series UM560/UM580
    • AMD Ryzen™ 5 5625U, 6 Cores/12 Threads
    • AMD Radeon™ Graphics (Graphics Frequency 1800 MHz)
    • DDR4 Dual channel (SODIMM Slots ×2)
    • M.2 2280 PCIe SSD
    • 1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
    • M.2 2230 WIFI Support (Wi-Fi,BlueTooth)

    【Powerful Processor & GraphicsUM560 features and benefits depend on system configurations, the power of AMD Ryzen™ 5 5625U (6 cores/12 threads. Base Clock 3.3 GHz, up to 4.3 GHz) and AMD Radeon™ Graphics (1800 MHz graphics frequency) Explore endless computing possibilities.

    【Alt-Mode USB-COne of the USB-C port on the back of the computer supports ALT-Mode. Alt-Mode allows USB-C ports to transfer data/video via multiple interfaces, including the increasingly popular DisplayPort video interface. If the monitor support USB PD (USB Power Delivery), users can use this port to power the computer and transfer video signal to the monitor at the same time which makes the whole setup cleaner.

    【Quad 4K DisplaysUM560 supports ultra-realistic 4K UHD visuals with incredible clarity. The quad 4K display solution provides you with maximum productivity at work to improve the efficiency.

    【GaN power supplyUM560 is the world’s first mini PC that comes with GaN power supply which is safer, faster and more portable.
    a. One for All: The 65W charger can auto detect the devices and compatible with mainstream charging protocols that can charge for a series of notebooks, for iPhones and Android phones, tablets and more.
    b. Perfect for Business Travel: Thanks to GaN tech, the 65W power adapter is more than 60% smaller than traditional silicone chargers, less bulky to be carried in your pocket.
    c. Fast Speed Charging: The USB-C GaN charger delivers up to 93% conversion rate, much higher efficiency than a standard charger.

    【Upgrade-FriendlyOptional configuration includes barebone / 16GB (8GB x 2) / 32GB (16GB x 2) memory and 256 / 512GB SSD.You can further increase the capacity according to your own needs.

    • Dual-channel DDR4 which supports up to 64GB
    • M.2 2280 PCle SSD x 1
    • 2.5 inch SATA HDD Slot x 1

    【Multiple Application OptionsUM560 is an ideal helper which can be widely used for home theater, office work, meeting, education, projector monitoring, host, printer, media equipment, router, etc.


    Processor AMD Ryzen™ 5 5625U, 6 Cores/12 Threads
    GPU AMD Radeon™ Graphics (Graphics Frequency 1800 MHz)
    Memory DDR4 Dual channel (SODIMM Slots ×2)
    Storage M.2 2280 PCIe SSD
    Storage Expansion 1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
    Wireless Connectivity M.2 2230 WIFI Support (Wi-Fi,BlueTooth)
    Video Output ① HDMI (4K@60Hz) ×2 , ② USB Typc-C(4K@60Hz) ×2
    Audio Output HDMI , 3.5mm Audio Jack
    Peripherals Interface RJ45 2.5 Gigabit Ethernet Port ×1
    USB Type-A ×4(USB3.2 Gen2 ×2 ,USB2.0 ×2)
    USB 3.2 Gen2 Type-C ×1(support PD3.0/DP1.4/DATA *not support USB2.0 ,In Back)
    USB 3.2 Type-C ×1(support DP1.4 ,4K@60Hz)
    USB 3.2 Gen2 Type-C ×1(Data Only , In Front)
    HDMI ×2
    Clear CMOS ×1
    DMIC ×1
    3.5mm Audio Jack ×1
    Power 65W GaN Type-C Power Delivery adapter(Included)
    System Windows 11 Pro

    Q1. If it's Windows OS pre-installed?

    A: UM560 is Windows 11 Pro pre-installed.

    Q2. What's the max RAM and the speed of UM560?

    A: The max RAM of UM560 is 64GB with speed limit to 3200MHz.

    Q3.How many monitors does UM560 support?

    A: UM560 supports with 4 monitors at the same time.

    Q4. Is the bracket free?

    A: Yes, each standard package includes a bracket.
